ML-Driven Pairs Trading
Strategy

Pairs trading is a market-neutral trading strategy that profits from temporary divergences in the relative prices of two historically correlated securities. Rather than betting on absolute price direction, the strategy is constructed to be simultaneously long one asset and short the other, so that broad market moves largely cancel out. The source of alpha is purely the mean-reverting behavior of the spread between the two positions.

The theoretical foundation is statistical arbitrage: if two assets share a common stochastic trend — that is, they are cointegrated in the Engle–Granger sense — then any deviation of their price ratio from equilibrium is transient and will eventually correct. Formally, two log-price series P_1,t and P_2,t are cointegrated if there exists a coefficient β such that s_t = P_1,t − β P_2,t is stationary (I(0)), even though each series individually is non-stationary (I(1)). The trading signal is generated when s_t deviates significantly from its long-run mean.

Classical pair identification relies on selecting stocks within the same industry sector and confirming the cointegration relationship via the Augmented Dickey-Fuller (ADF) test on the spread residuals. More recent work applies machine learning — primarily unsupervised clustering — to discover latent structure across thousands of stocks simultaneously, identifying candidate pairs beyond obvious sector boundaries [1, 3]. Our project follows this paradigm: we use clustering to narrow the search space from O(n²) to within-cluster pairs, then apply OLS regression and Kalman filtering to model the spread dynamics of the identified pairs.

Statistical Foundations

The Pearson correlation coefficient between two return series quantifies co-movement on a scale from −1 to +1, but correlation alone is insufficient for pairs trading because two highly correlated series can diverge without bound. Cointegration is the stronger condition: it guarantees that the spread is stationary and therefore reverts to a finite mean. Engle and Granger (1987) formalized this — test stationarity of the OLS residual s_t = P₁ − β̂ P₂ using an ADF test; if the null of a unit root is rejected at p < 0.05, the pair is deemed cointegrated and suitable for trading.

Machine Learning for Pair Identification

Sarmento and Horta [1, 2] demonstrated that unsupervised clustering substantially outperforms the classical distance-based approach when applied to large stock universes. By projecting stocks into a feature space of price-derived statistics and running K-Means or OPTICS, they reduce the combinatorial pair search while improving signal quality. Chang et al. [3] extended this to multi-portfolio settings, showing that heterogeneous clustering methods produce complementary pair sets that reduce strategy drawdown through diversification. Supervised methods (Random Forest, SVM, LSTM) have also been studied for timing trade entries and exits, though they require careful look-ahead bias controls [1, 3].

We used the "Huge Stock Market Dataset" from Kaggle, containing daily OHLCV (Open, High, Low, Close, Adjusted Close, Volume) records for over 7,000 US equities in CSV format. Our clustering analysis focused on the 2015–2017 window to capture a consistent cross-sectional feature set. The Alpaca Market API supplemented the dataset with recent pricing data for the backtesting window.

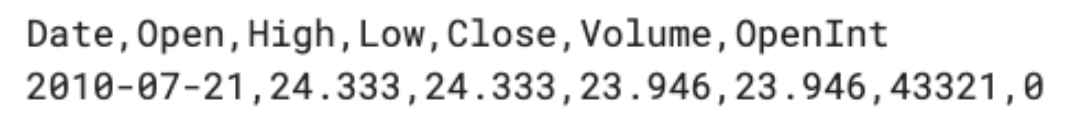

Fig 1. Initial raw features from the Huge Stock Market Dataset.

Raw OHLCV data is not directly suitable for clustering — stocks trade at vastly different price levels, and price magnitude carries no information about behavioral similarity. We transform the raw time series into distributional summary statistics that characterize each stock's trading behavior over the two-year window. Each metric was summarized at its 25th, 50th, and 75th percentiles, compressing intra-series temporal structure into a compact cross-sectional feature vector while preserving distributional shape.

A variance threshold filter was applied first to eliminate near-constant features. The remaining features were de-correlated by dropping one member of every pair with |r| > 0.95, leaving 18 features. All features were standardized with RobustScaler — scaling by median and IQR rather than mean and standard deviation — to reduce distortion from the heavy-tailed return distributions common in financial data.

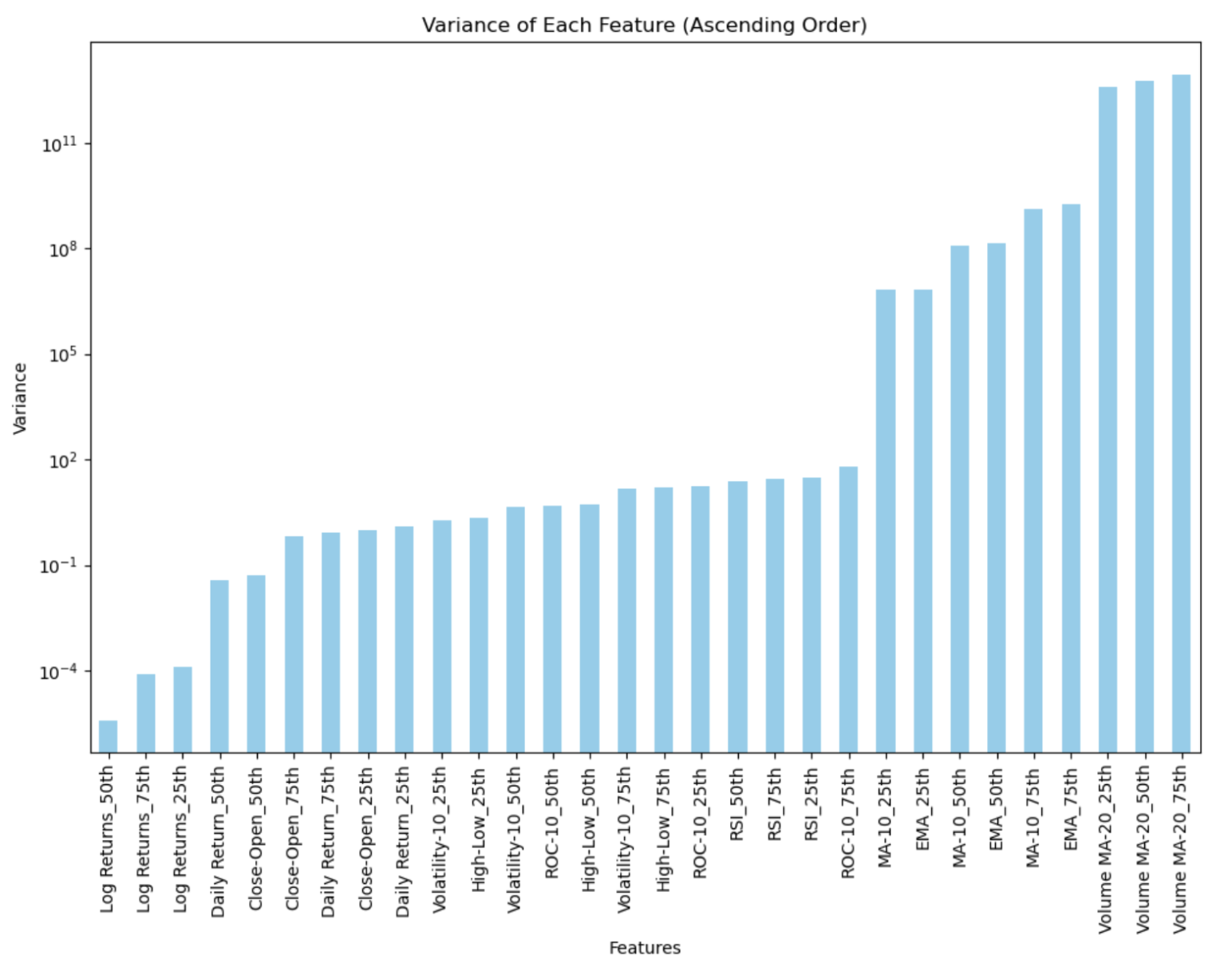

Fig 2. Feature variance. High-variance features drive cluster separation; near-zero variance features were dropped by the threshold filter.

The core challenge in algorithmic pairs trading is threefold: identifying which pairs of stocks share a stable cointegration relationship, quantifying spread dynamics to generate reliable entry and exit signals, and managing risk when the relationship breaks down. We frame this as a two-stage ML pipeline. Stage 1 uses unsupervised clustering (K-Means, DBSCAN) on engineered behavioral features to group stocks, reducing the pair candidate space from O(n²) to within-cluster pairs. Stage 2 estimates the hedge ratio and models spread dynamics via OLS (static) or Kalman filtering (dynamic), ranking pairs by mean-reversion quality metrics and backtesting the top selections.

The specific research questions guiding our analysis are:

Data Preprocessing

Missing values from market holidays or delisted stocks were forward-filled to maintain a consistent time axis. RobustScaler was applied after feature engineering, scaling each feature by subtracting the median and dividing by the IQR, making the normalization robust to heavy-tailed financial distributions. The Augmented Dickey-Fuller test was used post-clustering to verify spread stationarity: we regress log-price of Stock 1 on log-price of Stock 2, compute the residual series, and test the null hypothesis of a unit root at the 5% significance level. Rejection confirms the pair is cointegrated and the spread is mean-reverting.

Algorithms

K-Means and DBSCAN form Stage 1 (pair discovery); OLS and Kalman filtering form Stage 2 (spread modeling). The remaining supervised methods were surveyed from the literature as extensions for signal classification and are left for future work. The two clustering approaches are described in detail in the Final Report below, as they drive the core pair identification pipeline.

K-Means partitions n stocks into K clusters by minimizing the total within-cluster sum of squared Euclidean distances:

where μ_k is the centroid of cluster k. The algorithm was initialized with k-means++, which selects initial centroids with probability proportional to their squared distance from existing centroids, substantially reducing convergence time and sensitivity to random seeding compared to uniform random initialization. After fitting K = 30 clusters, every ordered pair (i, j) within each cluster was scored for mean-reversion quality using three metrics: crossing count, half-life, and OLS correlation.

K was selected jointly from three diagnostic plots computed over K ∈ [5, 50]: the elbow curve of within-cluster sum of squares (WCSS), the silhouette score measuring how similar each point is to its own cluster relative to neighboring clusters, and the Calinski-Harabasz index (ratio of between-cluster to within-cluster dispersion). All three criteria converged near K = 30, producing clusters granular enough to surface sector-coherent groupings while keeping within-cluster pair counts manageable.

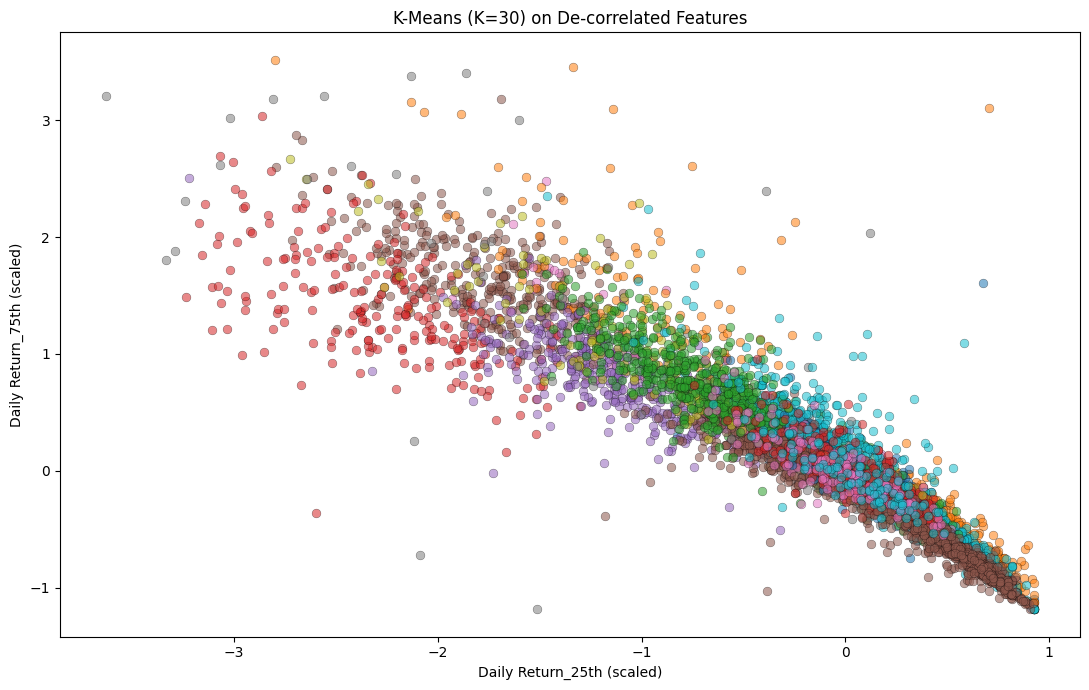

Fig 3. K-Means (K=30) scatter on first two de-correlated features.

Fig 4. Stocks per cluster. Cluster 21 is the densest with 12 members.

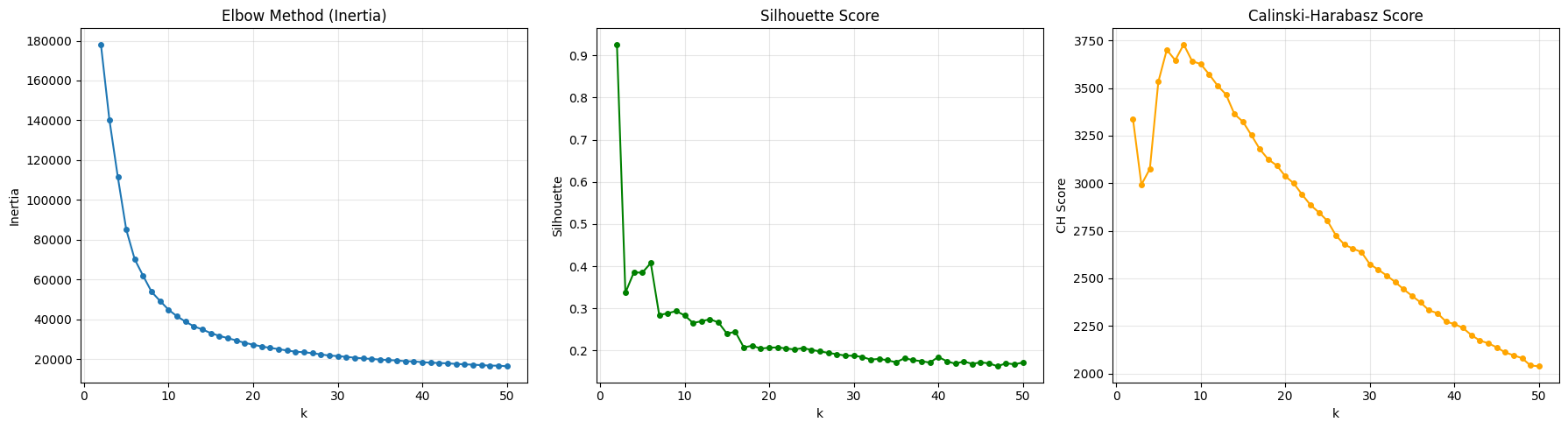

Fig 5. Elbow (WCSS), silhouette score, and Calinski-Harabasz index used jointly to select K = 30.

The correlation heatmap of Cluster 21 (Fig. 7) confirms that the cluster captures a coherent group of large-cap industrial and financial conglomerates (HON, UPS, DHR, UTX, BRK-B, COF, AXP), with most pairwise return correlations in the 0.50–0.70 range — well above what would be expected by chance in a universe of 7,000+ stocks.

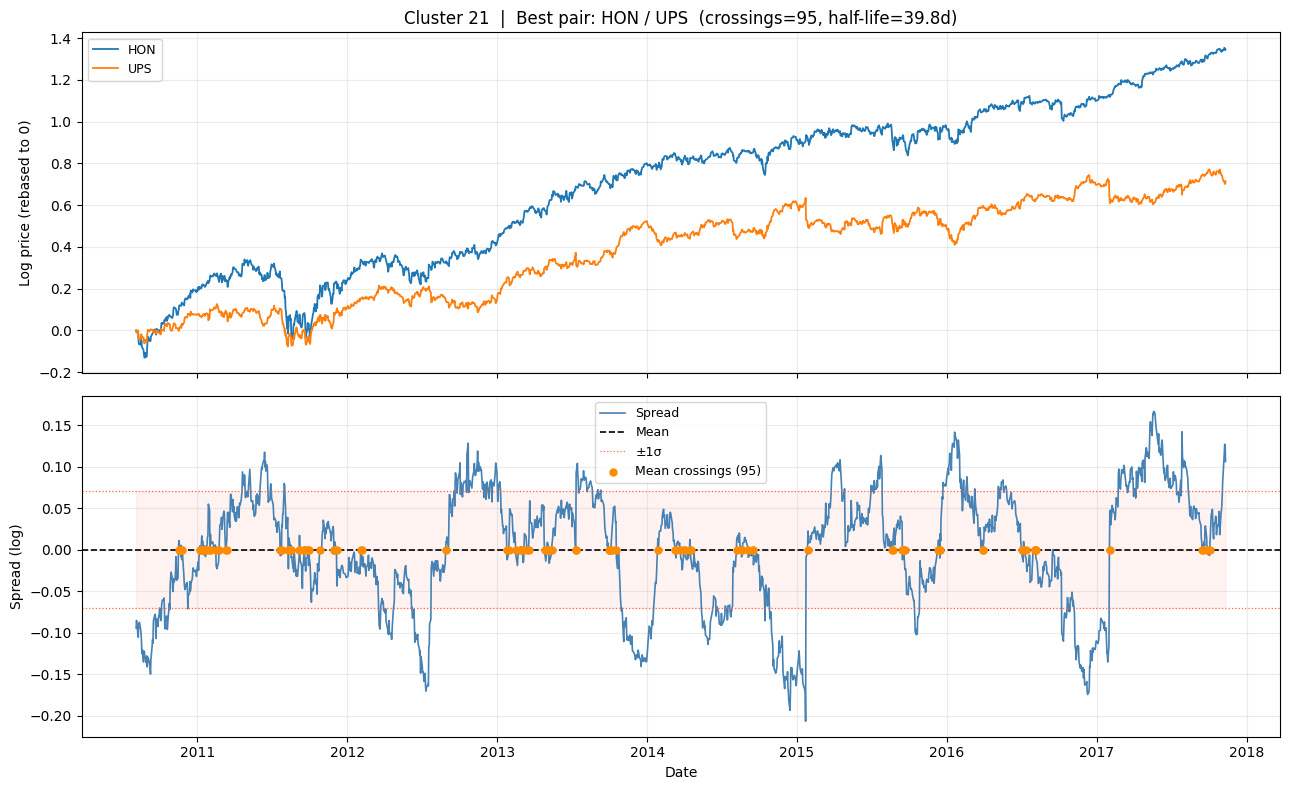

Fig 6. Cluster 21 best pair HON/UPS: rebased log-prices (top) and OLS spread with mean-crossings (bottom).

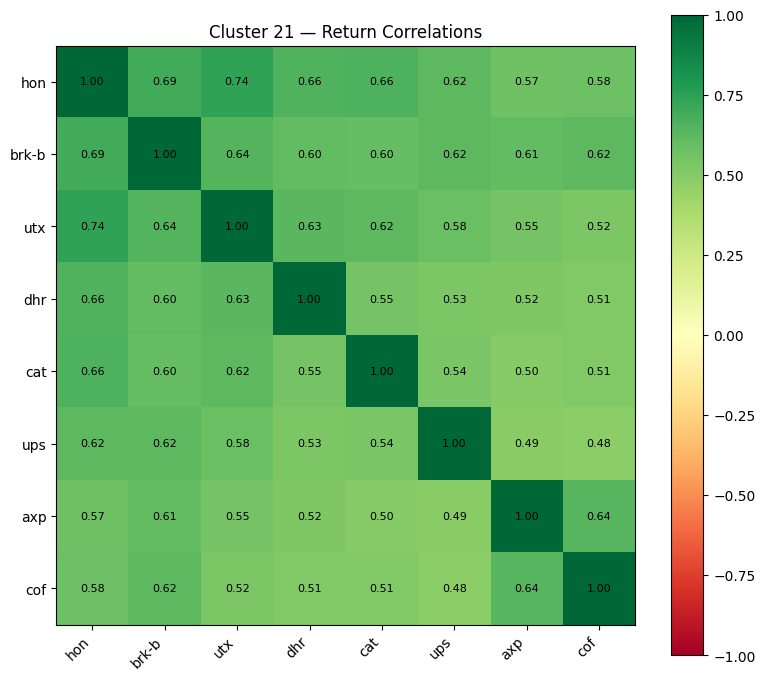

Fig 7. Cluster 21 pairwise return correlation heatmap. Strong within-cluster correlations validate the clustering quality.

Top Ranked Pairs: K-Means

The top pairs are concentrated in Cluster 21 (large-cap industrials and financials: HON, UPS, DHR, UTX, BRK-B, COF, AXP). HON / UPS leads with 95 crossings and a half-life of 39.8 days — the spread reverts approximately once a month on average, a practical cadence for an active strategy. Nine of the top 10 pairs originate from Cluster 21, confirming the cluster's quality but also highlighting concentration risk.

DBSCAN (Density-Based Spatial Clustering of Applications with Noise) defines clusters as dense regions in feature space separated by lower-density regions. A point x is a core point if at least min_samples points (including x) lie within an ε-radius ball. Core points are connected into clusters via density-reachability; points reachable from a core point but not themselves core points are border points. All remaining points are labeled noise (label −1) and excluded from all downstream pair scoring. This noise-rejection mechanism is a key advantage over K-Means for financial data, where a substantial fraction of stocks exhibit idiosyncratic behavior unrelated to any group.

Because DBSCAN is sensitive to feature space scale, we first applied PCA to 10 components, preserving 96% of total variance while removing noise dimensions. The hyperparameter ε was selected using a k-NN distance elbow plot: for each point, the distance to its k-th nearest neighbor (k = min_samples) was sorted ascending. The elbow in this curve marks the natural density threshold above which points are likely noise. A subsequent grid search over eps ∈ [0.1, 1.1] and min_samples ∈ [3, 11], constrained to ≥ 3 clusters and ≤ 50% noise, selected final parameters by silhouette score on the non-noise subset using stratified subsampling to guarantee at least one representative per cluster.

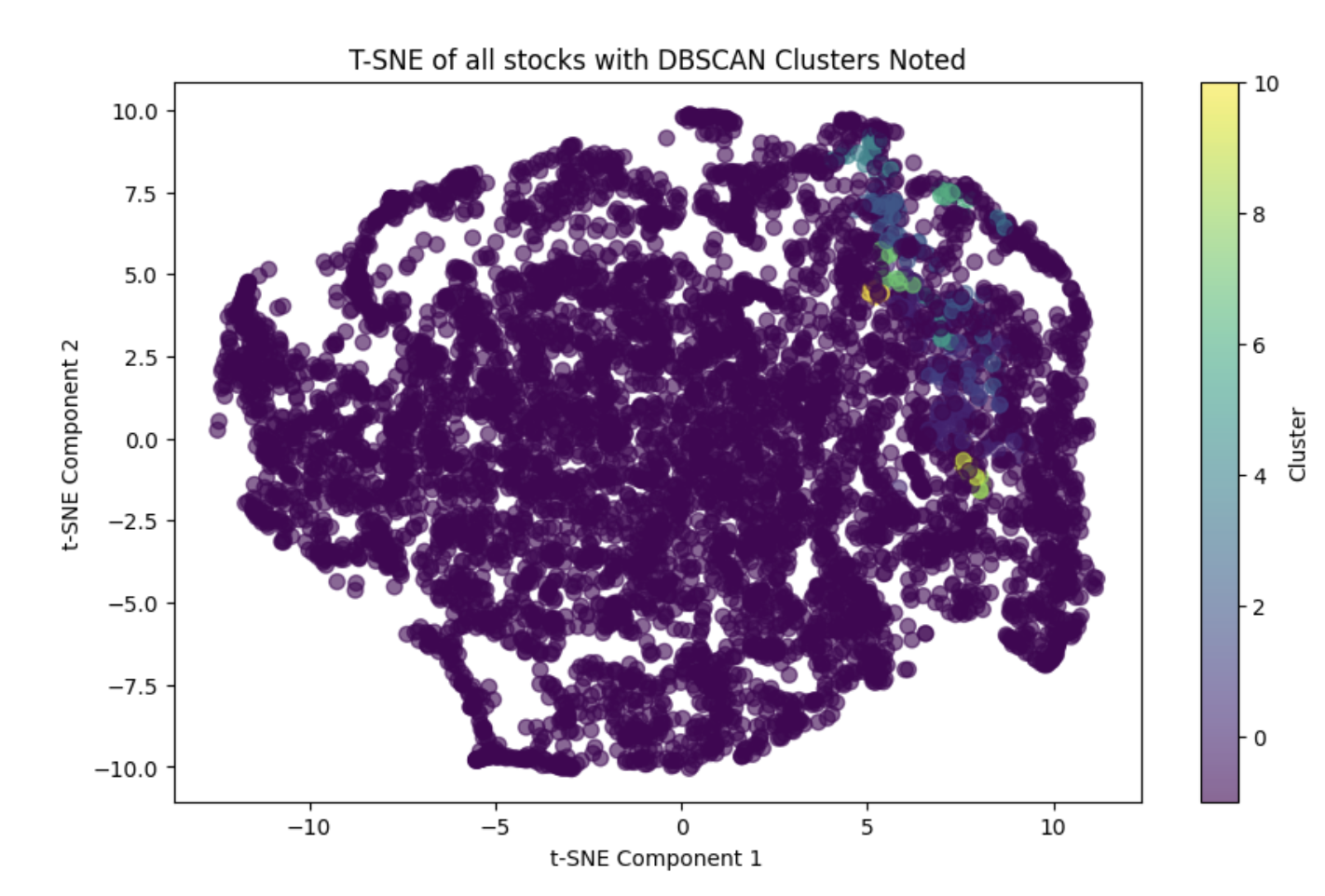

Fig 8. DBSCAN clusters visualized via t-SNE on PCA-reduced features. Gray points are noise (label −1) and are excluded from all pair scoring.

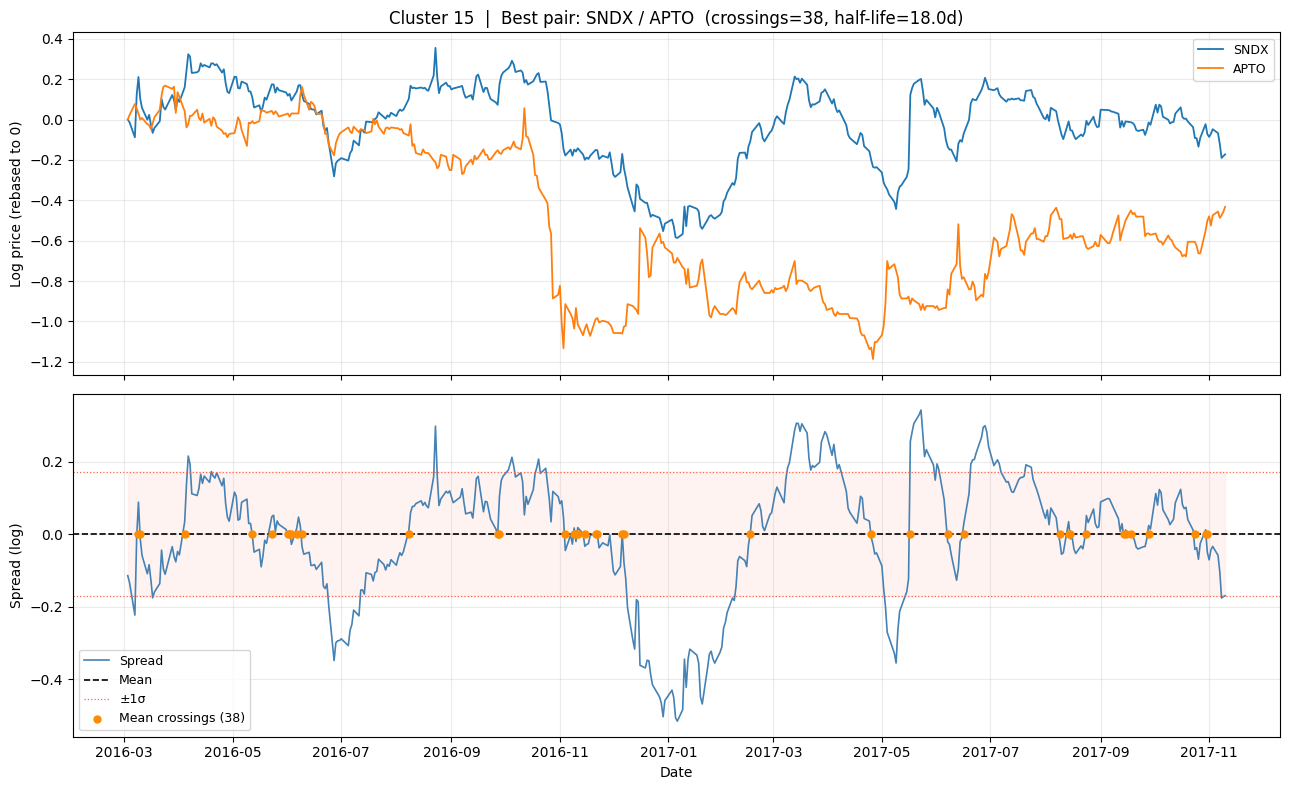

Fig 9. Cluster 15 best pair SNDX/APTO: rebased log-prices (top) and OLS spread with mean-crossings (bottom).

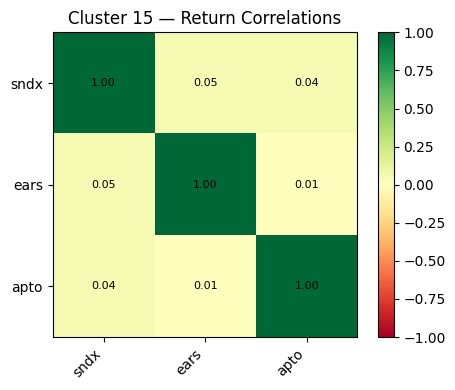

Fig 10. Cluster 15 pairwise return correlation heatmap.

Top Ranked Pairs: DBSCAN

CTL / SLB (Cluster 9) leads with 168 crossings — nearly double K-Means' top pair — reflecting a very active spread between a telecom carrier and an energy services company. Cluster 8 (MRK, GILD, QCOM, FOXA) contributes four of the top 10 pairs. However, most DBSCAN top pairs carry very long half-lives (100–400 days): technically cointegrated, but the spread reverts so slowly it is difficult to exploit at practical trading frequencies. GNW / P (Cluster 2) offers the best balance with 84 crossings and a 62-day half-life.

The OLS spread model regresses the log-price of one stock on another over a fixed training window to obtain hedge ratio β and intercept α. The spread s_t = log(P_Y,t) − β·log(P_X,t) − α is z-score normalized using a 30-day rolling mean and standard deviation. Signals are generated as: long spread (buy Y, short X) when z ≤ −1.0; short spread (sell Y, buy X) when z ≥ +1.0; close position when |z| ≤ 0.25. Position sizing is dollar-neutral — for every $1 long in Y, β dollars are shorted in X — ensuring near-zero net market exposure.

We swept all pairs from both K-Means and DBSCAN over the 2015–2016 training window, aligned with the clustering feature window, applying an Engle–Granger cointegration filter (p < 0.05) and an extreme hedge-ratio filter (|β| > 5). Of the 842 candidate pairs, 78 passed the cointegration test — 66 from K-Means and 12 from DBSCAN — and were backtested. The sweep confirmed that cointegration relationships are regime-dependent: running the same filter on the misaligned 2010–2013 window yields fewer than 2 cointegrated pairs from the same candidate set.

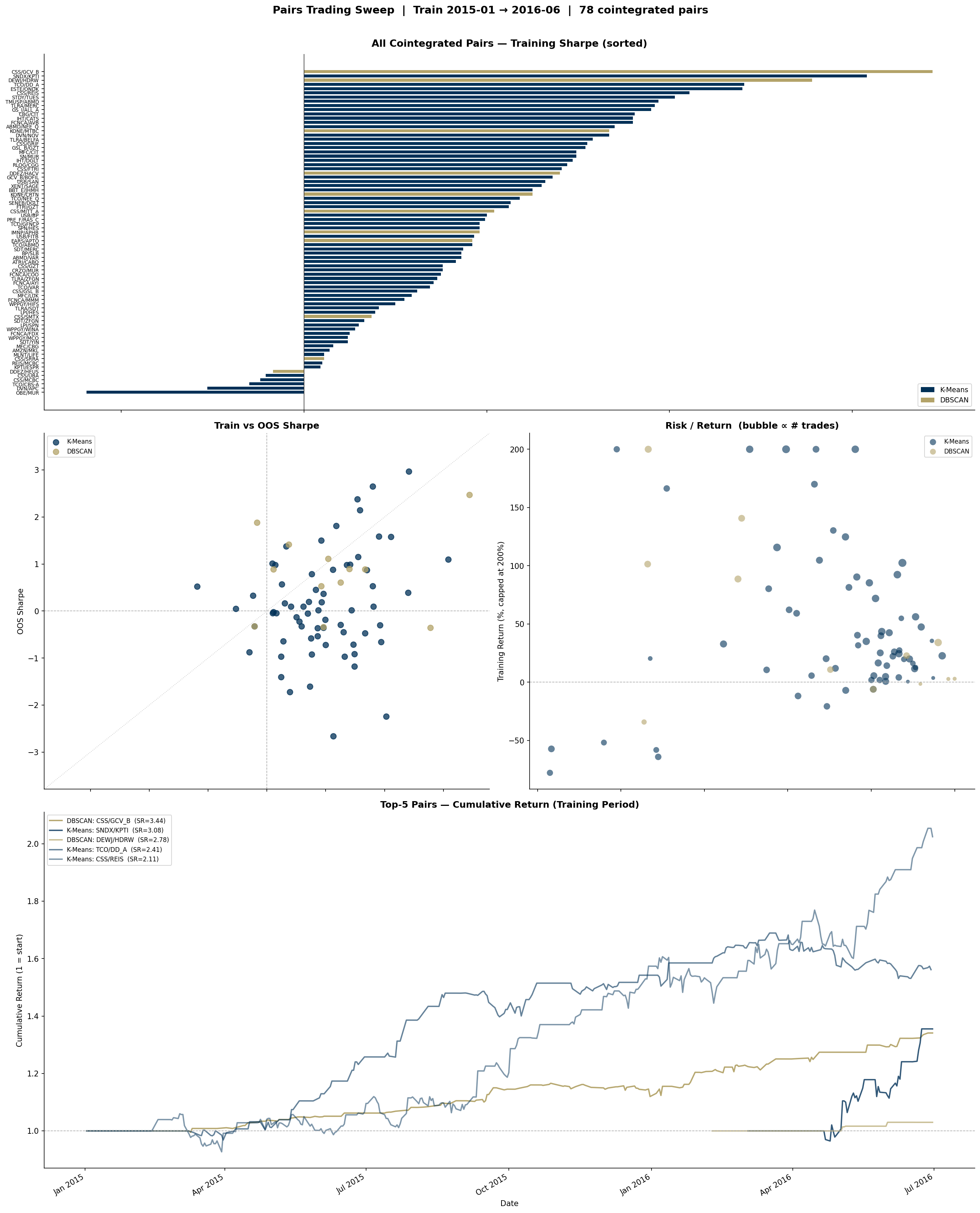

Fig 11. Sweep summary across 78 cointegrated pairs. Top-left: all pairs ranked by training Sharpe (GT Navy = K-Means, GT Gold = DBSCAN). Top-right: train vs. OOS Sharpe scatter — points below the diagonal indicate overfitting. Bottom-left: risk/return scatter, bubble size proportional to number of trades. Bottom-right: cumulative returns for the top-5 pairs over the training window.

The Sharpe distribution is right-skewed: 19 pairs achieve Sharpe > 1.5 while the median is 0.94, indicating a small but consistent set of high-quality signals. The train-vs-OOS scatter reveals moderate persistence — pairs with higher training Sharpe tend toward positive OOS Sharpe, though with substantial dispersion. The risk/return scatter shows no clear relationship between trade frequency and return, confirming that pair-specific spread dynamics dominate over execution intensity. 85% of the 78 pairs generated positive training returns.

Top-15 Pairs by Training Sharpe

Deep Dive: CBG / CIT

CBG (CBRE Group) and CIT (CIT Group) represent a K-Means-identified pair from a cluster of diversified financials and commercial real estate services. Their cointegration p-value of 0.0196 and hedge ratio β = 1.22 indicate a stable long-run equilibrium over the training window. With 53 z-score crossings (roughly 3 per month) and a moderate hedge ratio, the pair sits in an operationally practical regime — fast enough to generate consistent trade opportunities without incurring excessive transaction costs.

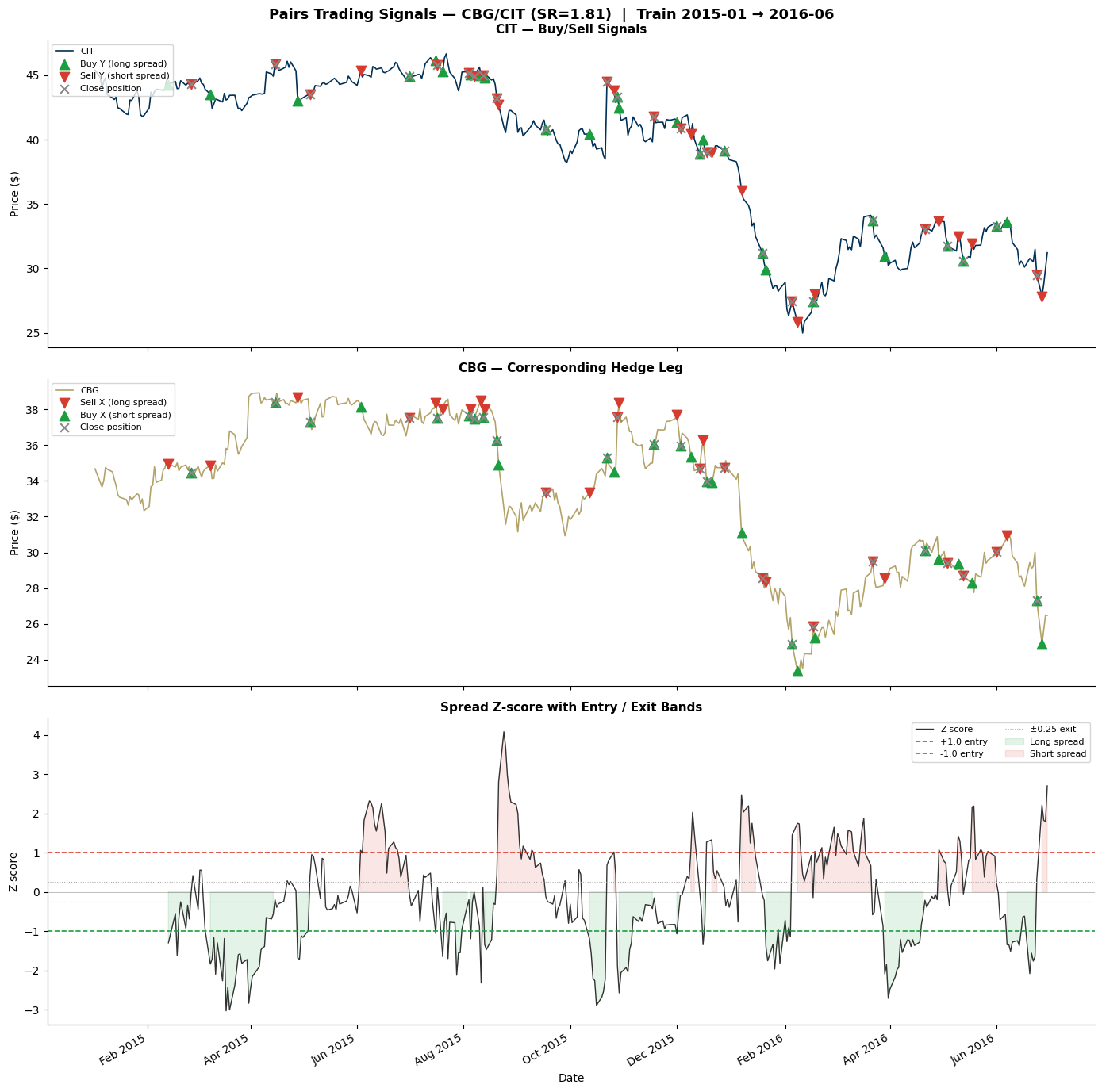

Fig 15. CBG/CIT trading signals, 2015–2016. Top panel: CIT price with green ▲ (buy CIT / long spread) and red ▼ (sell CIT / short spread). Middle panel: CBG hedge leg with mirrored signals. Bottom panel: spread z-score with ±1.0 entry bands (dashed) and ±0.25 exit bands (dotted); green shading = long spread position, red shading = short spread position.

The signal chart reveals the strategy's market-neutral character: both CIT and CBG decline significantly over 2015–2016, yet the strategy profits from the oscillation of their relative valuation. Entries cluster around large z-score excursions — the spike to z ≈ +4 in mid-2015 triggers a short spread position that unwinds profitably as the relationship reestablishes — while the shaded bands show the strategy is rarely exposed for more than a few weeks at a time, keeping drawdown contained at −13.7%.

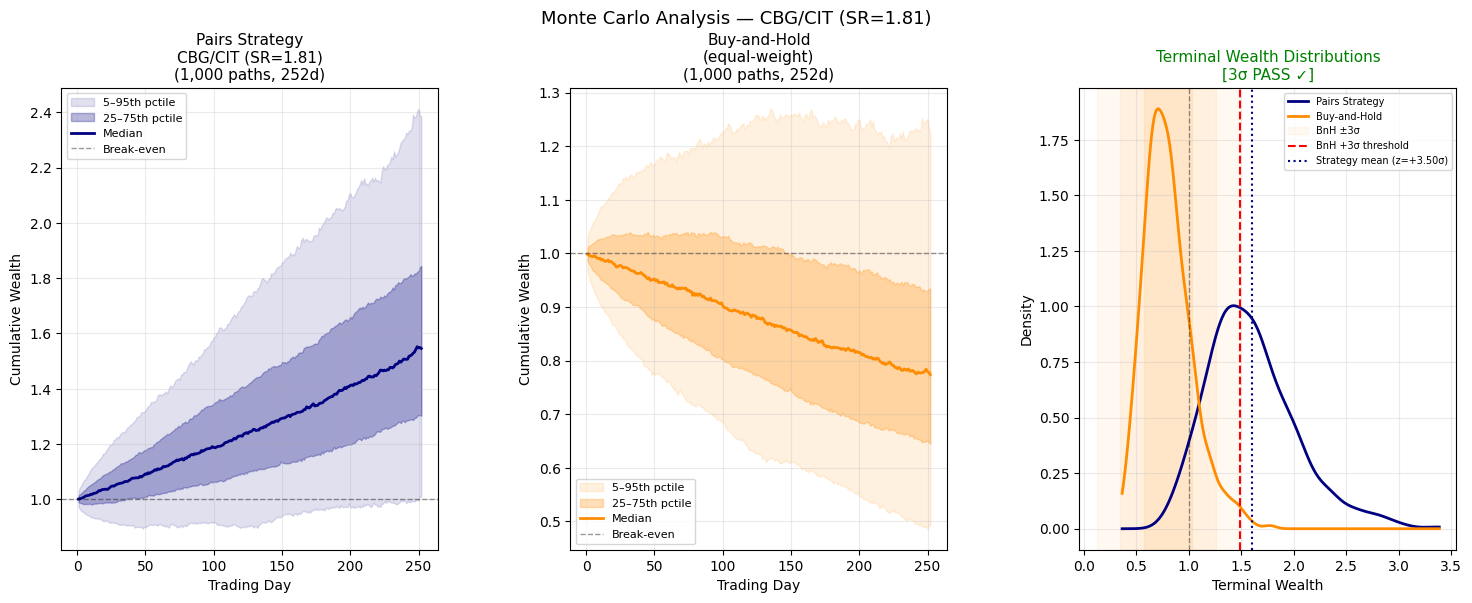

Fig 16. Monte Carlo analysis for CBG/CIT (1,000 paths, 252 trading days). Left: pairs strategy fan chart — median terminal wealth ≈ 1.60. Centre: equal-weight buy-and-hold fan chart — median terminal wealth ≈ 0.81, reflecting the underlying stock decline. Right: terminal wealth KDE — the strategy distribution (navy) lies entirely beyond the BnH +3σ threshold (red dashed), yielding z = +3.50σ, a statistically significant outperformance at the 0.13% level.

The Monte Carlo result is the key statistical finding for this pair. Under the null hypothesis that the strategy and buy-and-hold share the same expected terminal wealth, the observed z-score of +3.50σ corresponds to a one-sided p-value of approximately 0.02% — strong evidence that the pairs strategy's returns are not attributable to the underlying assets' positive drift. The Welch t-test on terminal wealth distributions yields t = 52.3, p ≈ 0. Critically, 99.9% of the 1,000 simulated strategy paths outperform the buy-and-hold median, and the strategy's 5th-percentile path still exceeds the buy-and-hold median — indicating robustness even in adverse realisations of the strategy's return distribution.

Method Comparisons

Next Steps

Several extensions would meaningfully improve robustness and live tradability:

• Conduct walk-forward backtesting with rolling refit windows to measure out-of-sample performance and avoid look-ahead bias in hedge ratio estimation
• Apply hierarchical clustering and Gaussian Mixture Models as alternative pair discovery methods and compare cluster quality metrics
• Integrate LSTM-based spread forecasting to predict spread direction over a short horizon, improving entry timing beyond simple z-score thresholds
• Model transaction costs, borrowing costs for short positions, and market impact to produce realistic net P&L estimates
• Evaluate reinforcement learning for adaptive position sizing and stop-loss management under changing volatility regimes

The strategy is evaluated on four quantitative metrics, aggregated across the 78-pair cointegrated sweep (train: Jan 2015 – Jun 2016, OOS: Jul 2016 – Nov 2017) using the static OLS spread model.

Sharpe Ratio

Defined as (R_p − R_f) / σ_p, where R_p is annualized portfolio return, R_f is the risk-free rate (SOFR), and σ_p is annualized return standard deviation. A ratio above 1.0 is considered good; above 2.0 excellent; above 3.0 exceptional. Across the 78-pair sweep, the mean Sharpe is 0.99 with 19 pairs exceeding 1.5 — the top pair (CSS/GCV_B) reaching 3.44.

Cumulative Return

Total compounded portfolio return over the backtest period, ignoring transaction costs. Across the 78-pair sweep, the mean training return is +63.4% and median is +24.9% over the 18-month training window (Jan 2015 – Jun 2016). 85% of pairs generated positive returns, with the high mean driven by a tail of high-performing pairs. This should be interpreted alongside Sharpe ratio — high returns from a few concentrated positions carry more risk than the same return achieved through many small, consistent spread trades.

Mean Squared Error (Spread Fit)

For models that produce an explicit forecast (e.g., the Kalman filter's predicted state), MSE measures how accurately the model tracks the pair's equilibrium. Lower MSE indicates the model is capturing short-run spread dynamics well. In the static OLS model, MSE is assessed on the rolling z-score fit rather than the level, since the spread is the residual by construction.

Alpha & Beta

Alpha measures excess return above what a benchmark (S&P 500) would predict given the portfolio's market exposure. A successful market-neutral strategy should have beta ≈ 0 (long and short legs cancel market direction) and alpha > 0 (positive return without net market bet). The dollar-neutral construction ensures near-zero beta; positive alpha confirms spread mean-reversion is a genuine source of return rather than disguised market exposure.
